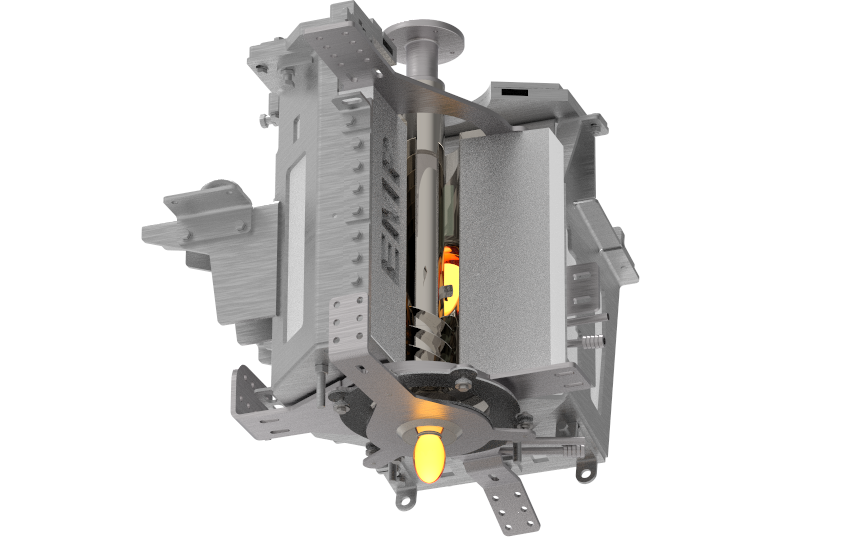

Gob Feeder
Precision gob forming for tableware, technical glasses and lenses
EMP-Glass designs and manufactures Gob Feeder solutions for a wide range of applications. Built around electrically heated Platinum-based system design, our Gob Feeders support stable, repeatable gob formation and can be tailored to different production requirements.
Designed for controlled gob production across a wide weight range
EMP’s Gob Feeders are designed for the production of glass gobs ranging from several grams up to 5 kilograms. Depending on the required weight range, the systems can be equipped with multiple exchangeable heated orifices, allowing the solution to be adapted to specific production needs.
The gob size and shape are controlled through the rotation and vertical movement of the screw plunger, while the gob-forming process is operated via a touchscreen and PLC control system.
When required by the glass quality standard, the system can also include a stirrer for cord removal and homogenization, a drain for impurity removal, and a refiner for bubble removal.
Wide gob range
The system supports gob production from several grams up to 5 kilograms, making it suitable for different product types and production requirements.
Precise gob control
Gob size and shape are accurately managed through the screw plunger’s rotational and vertical movement, helping maintain process consistency.
Stable and repeatable production
Temperature control in separate heating zones ensures excellent gob stability and repeatability during operation.
Integrated quality support
Depending on product quality requirements, the system can be expanded with a stirrer, drain and refiner to support homogenization, impurity removal and bubble reduction.
User-friendly operation
The gob-forming process can be operated through a touchscreen and PLC control system, supporting practical control in production.
Flexible process use
Beyond gob production, the system can also be used for continuous streaming when larger molds need to be filled.
EMP-Glass specializes in the tailored design of Platinum systems
The company supports glass manufacturers worldwide and combines scientific background with practical experience to improve understanding and performance of electrically heated Platinum systems in glass manufacturing.
For customers, this means working with a partner that does not only supply hardware, but can also support the full path from concept to operational system.
A complete delivery can include more than the Gob Feeder itself
Depending on project scope, EMP can provide the Gob Feeder as part of a broader turnkey system based on electrically heated Platinum alloy parts.
Pre-Assembled Modules
Optimized modules combine Platinum alloy parts, thermal insulation and steel support structures to reduce thermal losses, simplify installation and support stable long-term operation.
Heating Equipment & Temperature Control
Advanced control units provide highly precise temperature regulation of up to ±1 °K, helping improve energy efficiency, process stability and product consistency.
Mechanical Accessories
We supply essential mechanical equipment for melting and forming operations, including solutions for plungers, stirrers, glass shears and glass level control systems.
Oxygen Bubble Reduction Equipment
Specialized devices help reduce oxygen bubbles caused by electrolysis, improving optical quality and minimizing production waste.
Environmental Control Systems, Water Dipping Equipment
For high-temperature glass applications, ECS solutions help improve product quality and extend Platinum system lifetime. For less demanding glass types, water dipping equipment can also be supplied.
Optional Forming Equipment
Systems can be extended with additional components such as drawing chambers, roller assemblies, annealing chambers and other customized forming solutions for specialized production lines.
Simulation-driven system optimization
EMP also offers modeling services for electrically heated Platinum systems, including simulations of Platinum components, surrounding insulation and glass flow. This capability can support system optimization and better technical decision-making in complex projects.
A structured process for reliable project delivery
From the first consultation to commissioning and after-sales support, EMP-Glass follows a clear and efficient workflow tailored to each customer’s technical and production requirements.
This step-by-step process helps ensure precision, transparency and reliable execution throughout the project.
Looking for a Gob Feeder tailored to your production?
Whether you are planning a new line, upgrading an existing process or looking for a stable and repeatable gob-forming solution, EMP-Glass is ready to support your project with tailored design, technical know-how and full-service delivery.
